| Model | TS01 Plus |
| Weight capacity | 300 lbs. |
| Drive Wheels | Rear |
| Maximum speed | 6.0km/h |
| Operating Range | 22.0 km |
| Ground Clearance | 3.20 in. |
| Turning Radius | 43.5. in. |
| Type Batteries | 15AH (Battery Box) |
| Colors | Red, Blue White etc. |
| Freewheel Mode | Yes |

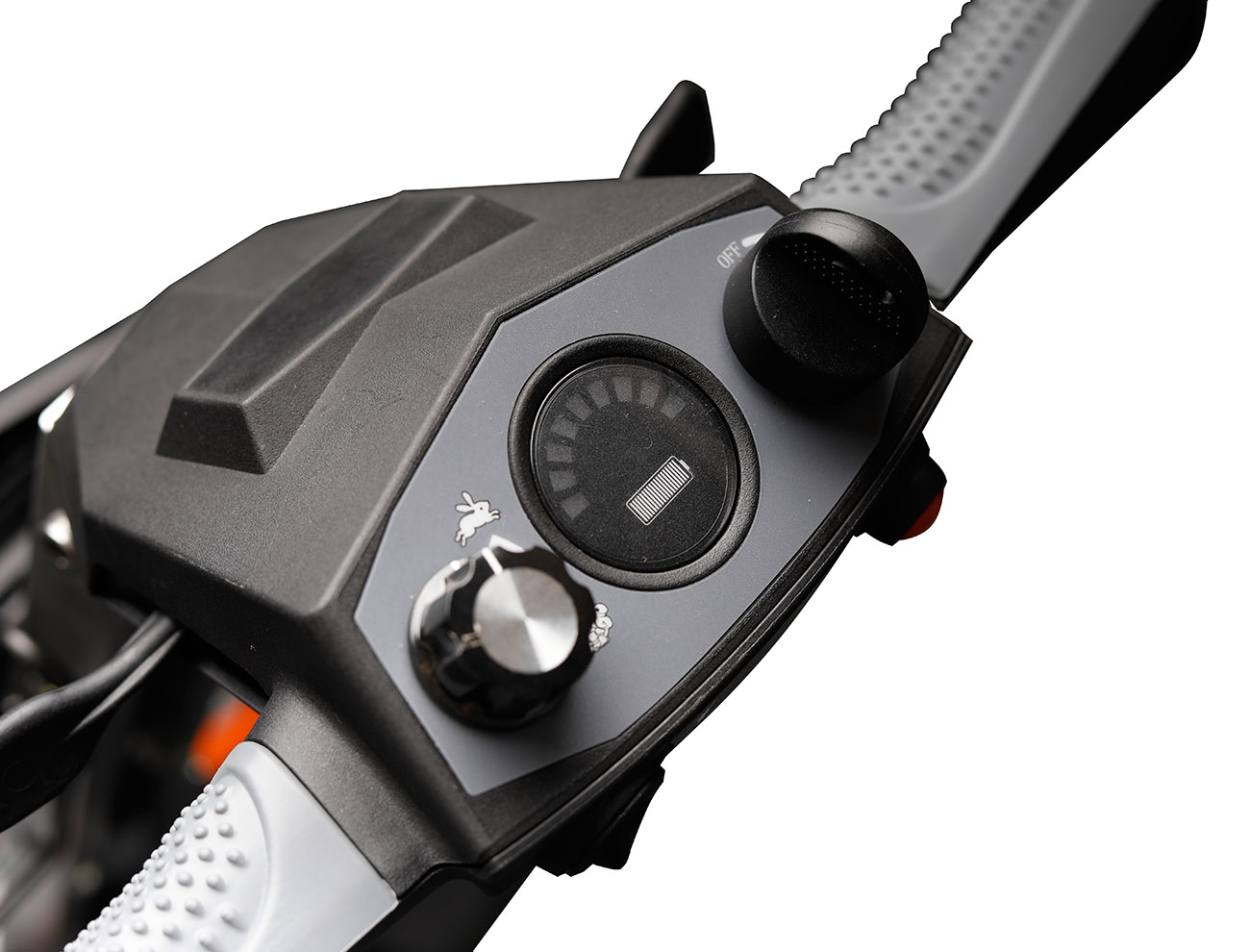

| Electronic Speed Control | Yes |
| Electro- Brakes | Yes |
| Charger | Off-board / 2A |
| Controller | 50 Amp Dynamic R-Series |
| Length | 38.6 in. |
| Width | 18.5 in. |
| Height (ground to top seat back) | 34-35.5 in. |
| Ground to top of Seat | 22-23in. |
| Ground to top of Deck | 4.0 in. |
| Deck to top of Seat | 17.5-19.5 in. |
| Front axle to Rear axle | 28.7 in. |
| Weight of Unit: (N0 Seat) | 47 lbs. |
| Tires: | Solid |
| Front | 6.4 in. |
| Rear | 7.3 in. |
| Rear Anti-Tip Wheels | 2 in. |

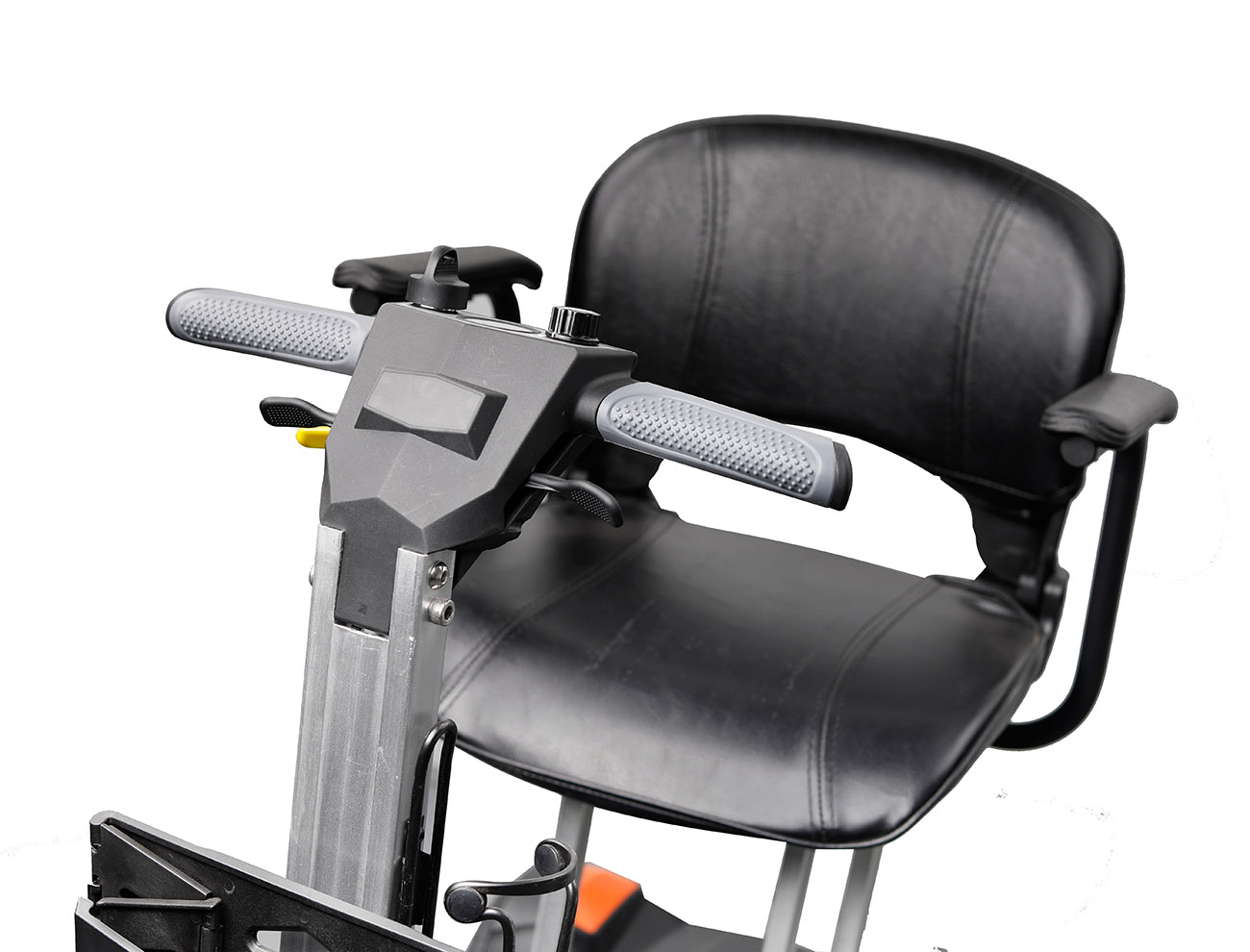

| Standard Seat: | Stadium Style |
| Seat Back Height | 14 in. |
| Width x Depth | 16"x 14" |
| Folding Dimension (No saet and Basket) |
38.6*18.5*11.8 in |
| Front light | 2-LED |
| Rear light | LED (Red) |
| Front Basket | Folding Basket (Optional) |
FEATURES:
1.Compact and fresh new look
2. Durable yet lightweight
3. Foldable and highly portable
4. Easily adjustable tiller height
5. Long distance coverage
6. Front and back lighting
7. Optimized for one-man or two-man carry
8. Easily detachable seat
9. Switch control of electromagnetic brake
10. Available in three different configurations
